500kW Gas/HVO/Oil Fired Packaged Boiler Plant

• Maximum Output: 500kW Gas or Oil
• Boiler: Viessmann
• Burner: Oil
• Oil: Riello RL50
• Gas: RS50
• Pumps: tpd 80-120/21 (twin bed) fixed speed
• Temperature Range: 60-90°C
• LTHW Connections: DN100
• Electrical: 32 amp 1 phase
• Gas Connection: 50mm
• Water Connection: 15mm
• Flow Rate: 11.90kg/s and 70kPA
• Dimensions (LxWxH): 3030mm x 2428mm x 2599mm
• Weight: 3.5 tonnes (approx.)
• Pressurisation Plant: Included
• Telemetry: Trend IQ3 controller with GSM modem reporting
• Variable Temperature: Yes
• Noise: 72 dBA
• Handling Options: HIAB
• HWS Connection: DN40
• HWS Flow Rate: 1 Kg/s
• Max HWS Temperature: 60°C
• Maximum Static: 3Bar – max system volume 3000 litres (500 litre expansion vessel included)
• CWS Connection: DN40

The 500kW containerised boiler plant room is one of our most versatile systems. Sturdy, adaptable for multiple needs, it has all the features to provide consistent hot water and heating for large commercial, domestic and industrial sites.

It is always our intention to provide clients with the most reliable temporary boiler system, which is why we reinforce this with monitoring technology. We fit the Trend 963 in each of our temporary boiler plants to automatically alert us if any problems take place. This sophisticated system gives our team with the ability to check fuel levels and other technical details, providing us with in-depth knowledge on the status of your boiler at all times, without having to attend your site.

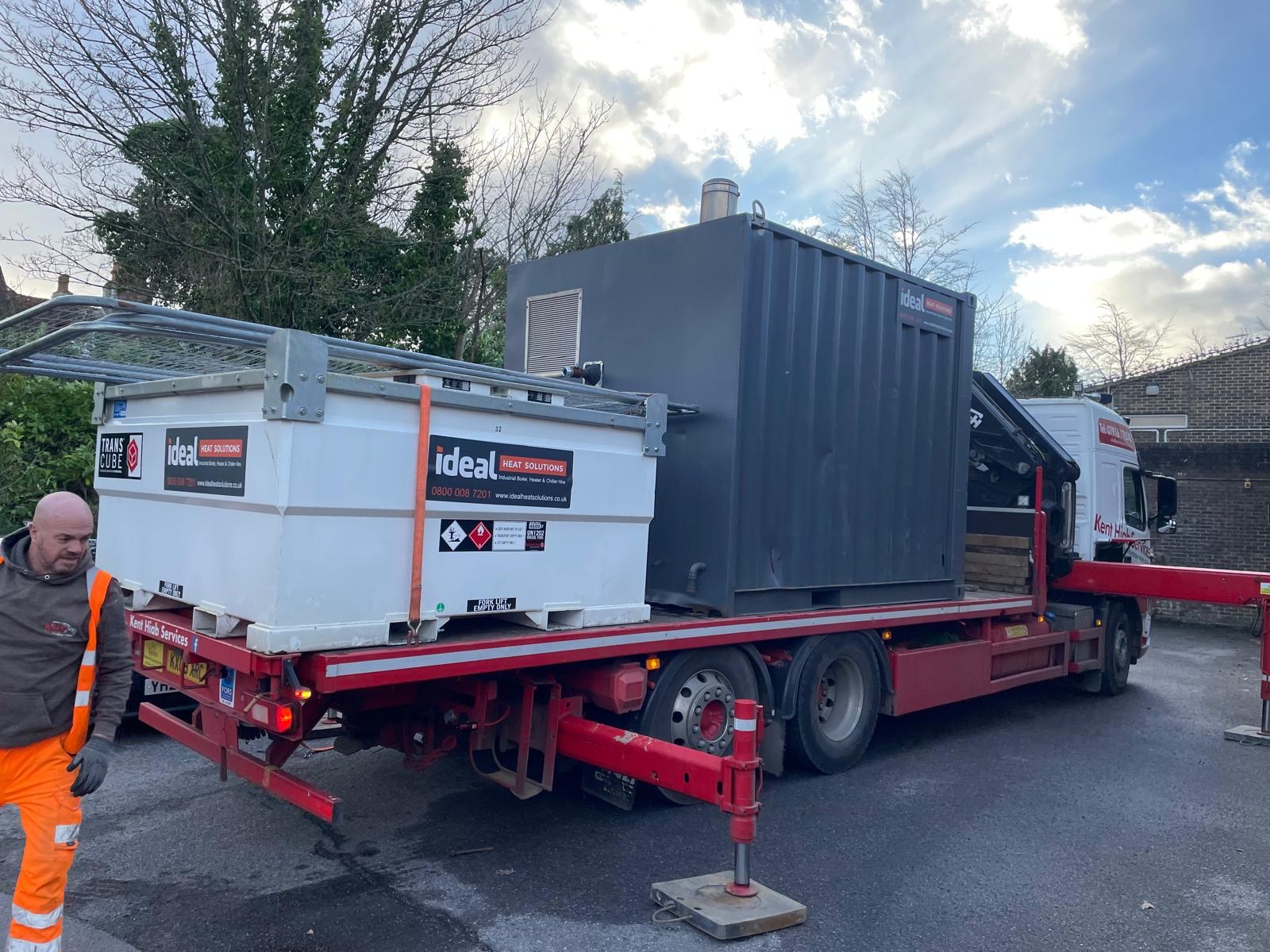

Often enough, our OFTEC-approved engineers are called out because a boiler has partially malfunctioned or completely broken down. Reducing downtime is the primary objective in these situations, which is why containerised boiler plants of this kind are so effective. They can prevent any added inconvenience, as it is simple to load a packaged boiler on a Hiab lorry, set it in place and install it. From there, it should serve your site without interruption for several months.

• Refiniries
• Factories
